from reading data to graphing results
LISER
February 2, 2023
This training aims to teach you data analysis in R from A-Z.
Data analysis includes
reading in a data set
cleaning data / manipulating values in columns
creating new columns
merging data
statistical analysis
graphing results
writing reports
This training is for people who have basic knowledge of programming!
The basic knowledge includes:
data type
if,else statement
for, while loop
basic concept of a user-defined function
This training assumes you are using R Studio for coding your R script so
if you have not installed the program, please do by clicking this link.
Let’s set the environment for our R-coding.
I strongly suggest you put these lines of code at the start of your code file
You will use them a lot.
Packages are a toolbox that you can get(install)
and use to make your life(coding) easier!
The most famous package bundle in the R world!
String Manipulation
Data Analysis
Graph
Report
Pipeline tools
Check out this website for more details.
The website states that:
With targets, you can maintain a reproducible workflow without repeating yourself.
Let’s install a package called ‘gapminder’
Let’s install the ‘dplyr’ package, ‘stringr’ package, and ‘ggplot2’ package
Intuitive way
Elegant way
The better way to do data analysis with R is by creating a project!!
Project allows you:
Let’s create a “training” project at our desktop.
Follow the section 6 of this webpage.
Let’s initially focus on CSV files only!
First let’s read in the gapminder table from the gapminder package
Let’s export this table to a CSV file
under the data folder in the project directory
Don’t forget to create the data folder before running the code!
or you will get an error
It is faster to export a data if you use the data.table package
It is fast!(link)
#data table way
library(data.table)
##install.packages("data.table")
data <- fread("data/gapminder.csv")
#advantages of fread
data <- data.table::fread("data/gapminder.csv",
encoding = "UTF-8", #choose encoding
nrows = 10, #choose how many rows
select = c("country", "continent")) #choose which columns
In general, Google/Stack Overflow is your friend.
Many times, researchers would like to know how long it takes to read a file.
Especially, if the file is large.
There are two ways to check/see your data
For instance,
data <- gapminder::gapminder
str(data)
'tibble [1,704 × 6] (S3: tbl_df/tbl/data.frame)
$ country : Factor w/ 142 levels "Afghanistan",..: 1 1 1 1 1 1 1 1 1 1 ...
$ continent: Factor w/ 5 levels "Africa","Americas",..: 3 3 3 3 3 3 3 3 3 3 ...
$ year : int [1:1704] 1952 1957 1962 1967 1972 1977 1982 1987 1992 1997 ...
$ lifeExp : num [1:1704] 28.8 30.3 32 34 36.1 ...
$ pop : int [1:1704] 8425333 9240934 10267083 11537966 13079460 14880372 12881816 13867957 16317921 22227415 ...
$ gdpPercap: num [1:1704] 779 821 853 836 740 ...'
Maybe you simply want to check the top N rows or the last N rows
Maybe you simply want to check unique values of a column
# changing the list into a vector again
temp <- unlist(temp)
temp
'[1] "a" "1"'
# list can have sub-structures
temp <- list(country = c("France", "Germany"),
capital = c("Paris", "Berlin"),
population = c(67500000, 83130000))
'$country
[1] "France" "Germany"
$capital
[1] "Paris" "Berlin"
$population
[1] 67500000 83130000'
You should be careful when you want to extract a value from a list
You should be careful when you want to extract a value from a list
#list
temp[1]
'$country
[1] "France" "Germany"'
class(temp[1])
'[1] "list"'
#vector
temp[[1]]
#or
temp$country #think $ a sign to use to access a sub-structure(sub-list)
'[1] "France" "Germany"'
class(temp[[1]])
'[1] "character"'
#trying to access a value of a sub-list(country)
temp[1][1] #wrong
'$country
[1] "France" "Germany"' #retrieved the whole sub-list(country) instead
temp[[1]][1] #right
#or
temp$country[1]
'[1] "France"'
First, let’s create an example data.frame(table in R)
Piping!
%>%
A special operator from the dplyr package!
Think it as “then” in English.
df %>% # call df
filter(!is.na(capital))
#then filter observations that do not have a missing value(NA) in the capital column
# ! means NOT e.g. 1==1 1!=2
"NA is a special data type in R that indicates a missing value
(comparable to NaN value in Python)"
#the equivalent is
filter(df, !is.na(capital))
The advantage of piping is that it allows you to write concise codes. For instance,
#basic way
lux <- filter(df, country=="Luxembourg") #getting Luxembourg observation
lux <- mutate(lux, capital = "Luxembourg City") #changing the capital value for Luxembourg
lux
" country capital population
1 Luxembourg Luxembourg City 639000"
#piping!
lux <- df %>%
filter(country=="Luxembourg") %>%
mutate(capital = "Luxembourg City")
lux
" country capital population
1 Luxembourg Luxembourg City 639000"
Let’s say you have odd values for missing values e.g. -999
#retrieve an observation that has the value "-999" in the capital columns
df %>%
filter(capital=="-999")
#change the capital value
df %>%
filter(capital=="-999") %>%
mutate(capital="Luxembourg City")
#change the population value
df %>%
filter(capital=="-999") %>%
mutate(capital="Luxembourg City") %>%
mutate(population = 639000)
#different version
df %>%
filter(capital=="-999") %>%
mutate(capital="Luxembourg City",
population = 639000)
Don’t forget to assign the changed values to the original data frame!
Actually you need to use ifelse() function to get all observations
#re-creating the data frame
df <- data.frame(country = c("France", "Germany", "Luxembourg"),
capital = c("Paris", "Berlin", -999),
population = c(67500000, 83130000, "Non_existent"))
#changing the capital values!
df %>%
mutate(capital=ifelse(capital=="-999", #condition!
"Lux City", #if TRUE
"FALSE")) #if FALSE
" country capital population
1 France FALSE 67500000
2 Germany FALSE 83130000
3 Luxembourg Lux City Non_existent"
Actually you need to use ifelse() function to get all observations
#keeping the other values
df <- df %>%
mutate(capital=ifelse(capital=="-999",
"Luxembourg City",
capital)) #keeping the rest values
#changing the population as well
df <- df %>%
mutate(population=ifelse(population=="Non_existent",
639000,
population)) %>%
mutate(population = as.integer(population))
df
" country capital population
1 France Paris 67500000
2 Germany Berlin 83130000
3 Luxembourg Luxembourg City 639000"
Sometimes, you need to create your custom function to detect missing values.
For instance,
check_miss <- function(column, bool=F){
if(bool==F){#if one don't want T/F values for the result
fin_value <- is.na(column) | stringi::stri_isempty(column)
fin_value <- grep(T, fin_value) #returning the location where T is located
return(fin_value)
}else{
fin_value <- is.na(column) | stringi::stri_isempty(column) #returning a boolean vector
return(fin_value)
}
}
Let’s test the function
It is simple! Just use mutate() function to create a new column
There are two ways!
1.The intuitive way
#saving the value
temp_pop <- df %>%
filter(country %in% c("France", "Luxembourg")) %>%
summarize(french_pop = sum(population)) %>%
unlist()
temp_pop
"french_pop
68139000"
#and then creating the column
df <- df %>%
mutate(french_pop = temp_pop)
df
" country capital population total_pop french_pop
1 France Paris 67500000 151269000 68139000
2 Germany Berlin 83130000 151269000 68139000
3 Luxembourg Luxembourg City 639000 151269000 68139000"
2.The complex way
df <- df %>%
#creating a column that indicates whether a country speaks french
mutate(french = ifelse(country %in% c("France", "Luxembourg"),
T,
F)) %>%
#grouping by french column
group_by(french) %>%
#creating a new column
mutate(french_pop = ifelse(french==T,
sum(population),
NA)) %>%
ungroup() #important!
df
" country capital population total_pop french_pop french
<chr> <chr> <int> <int> <int> <lgl>
1 France Paris 67500000 151269000 68139000 TRUE
2 Germany Berlin 83130000 151269000 NA FALSE
3 Luxembourg Luxembourg City 639000 151269000 68139000 TRUE "
If you forget to ungroup…
df <- df %>%
mutate(french = ifelse(country %in% c("France", "Luxembourg"),
T,
F)) %>%
group_by(french) %>%
mutate(french_pop = ifelse(french==T,
sum(population),
NA))
#results in grouped sum by french still!
df %>%
mutate(temp = sum(population))
"country capital population total_pop french_pop french temp
<chr> <chr> <int> <int> <int> <lgl> <int>
1 France Paris 67500000 151269000 68139000 TRUE 68139000
2 Germany Berlin 83130000 151269000 NA FALSE 83130000
3 Luxembourg Luxembourg City 639000 151269000 68139000 TRUE 68139000"
If you forget to ungroup…
df <- df %>%
mutate(french = ifelse(country %in% c("France", "Luxembourg"),
T,
F)) %>%
group_by(french) %>%
mutate(french_pop = ifelse(french==T,
sum(population),
NA))
#results in grouped sum by french still!
df %>%
mutate(temp = sum(population))
"country capital population total_pop french_pop french temp
<chr> <chr> <int> <int> <int> <lgl> <int>
1 France Paris 67500000 151269000 68139000 TRUE 68139000
2 Germany Berlin 83130000 151269000 NA FALSE 83130000
3 Luxembourg Luxembourg City 639000 151269000 68139000 TRUE 68139000"
#check it
is.grouped_df(df)
"[1] TRUE"
#choose the columns you want to exclude
df %>%
select(-french_pop, -french)
"# A tibble: 3 × 3
country capital population
<chr> <chr> <int>
1 France Paris 67500000
2 Germany Berlin 83130000
3 Luxembourg Luxembourg City 639000"
#choose the columns you only need
df %>%
select(country, capital, population, total_pop)
"# A tibble: 3 × 4
country capital population total_pop
<chr> <chr> <int> <int>
1 France Paris 67500000 151269000
2 Germany Berlin 83130000 151269000
3 Luxembourg Luxembourg City 639000 151269000"
#choose the columns you want to exclude
df %>%
select(-french_pop, -french)
"# A tibble: 3 × 3
country capital population
<chr> <chr> <int>
1 France Paris 67500000
2 Germany Berlin 83130000
3 Luxembourg Luxembourg City 639000"
#choose the columns you only need
df %>%
select(country, capital, population, total_pop)
"# A tibble: 3 × 4
country capital population total_pop
<chr> <chr> <int> <int>
1 France Paris 67500000 151269000
2 Germany Berlin 83130000 151269000
3 Luxembourg Luxembourg City 639000 151269000"
#declare the columns of interest first!
cols <- c("country", "capital", "population", "total_pop")
df %>%
select(all_of(cols)) #there is also any_of()
"# A tibble: 3 × 4
country capital population total_pop
<chr> <chr> <int> <int>
1 France Paris 67500000 151269000
2 Germany Berlin 83130000 151269000
3 Luxembourg Luxembourg City 639000 151269000"
Let’s try an advanced example!
Find columns that you want to erase!
#advanced
df <- data.frame(country = "France",
capital = "Paris",
population = 67500000,
Y1950_population = NA,
Y1960_population = "",
Y1970_population = -999)
df
#check the column names of df
colnames(df)
'[1] "country" "capital" "population" "Y1950_population" "Y1960_population" "Y1970_population"'
#find the columns you want to delete!
grep("^Y", colnames(df))
"[1] 4 5 6"
grepl("^Y", colnames(df))
"[1] FALSE FALSE FALSE TRUE TRUE TRUE"
Declare the columns you want to erase!
#advanced
df <- data.frame(country = "France",
capital = "Paris",
population = 67500000,
Y1950_population = NA,
Y1960_population = "",
Y1970_population = -999)
df
#check the column names of df
colnames(df)
'[1] "country" "capital" "population" "Y1950_population" "Y1960_population" "Y1970_population"'
#find the columns you want to delete!
grep("^Y", colnames(df))
"[1] 4 5 6"
grepl("^Y", colnames(df))
"[1] FALSE FALSE FALSE TRUE TRUE TRUE"
#declare the columns you want to erase!
del_cols <- colnames(df)[grep("^Y", colnames(df))]
del_cols
'Y1950_population" "Y1960_population" "Y1970_population"'
Remove the columns from the data frame!
#advanced
df <- data.frame(country = "France",
capital = "Paris",
population = 67500000,
Y1950_population = NA,
Y1960_population = "",
Y1970_population = -999)
df
#check the column names of df
colnames(df)
'[1] "country" "capital" "population" "Y1950_population" "Y1960_population" "Y1970_population"'
#find the columns you want to delete!
grep("^Y", colnames(df))
"[1] 4 5 6"
grepl("^Y", colnames(df))
"[1] FALSE FALSE FALSE TRUE TRUE TRUE"
#declare the columns you want to erase!
del_cols <- colnames(df)[grep("^Y", colnames(df))]
del_cols
'Y1950_population" "Y1960_population" "Y1970_population"'
#exclude the columns!
df <- df %>%
select(-all_of(del_cols))
df
" country capital population
1 France Paris 67500000"

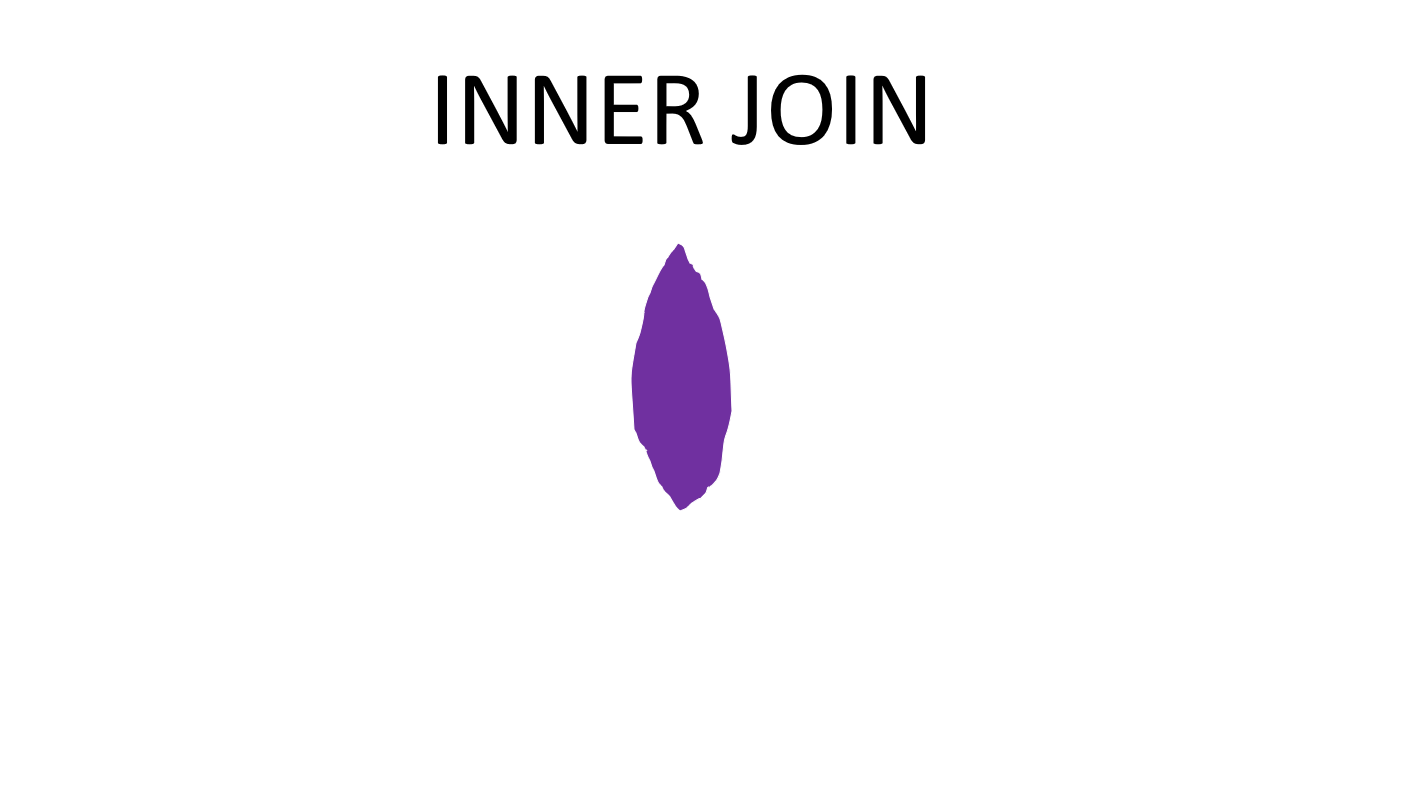

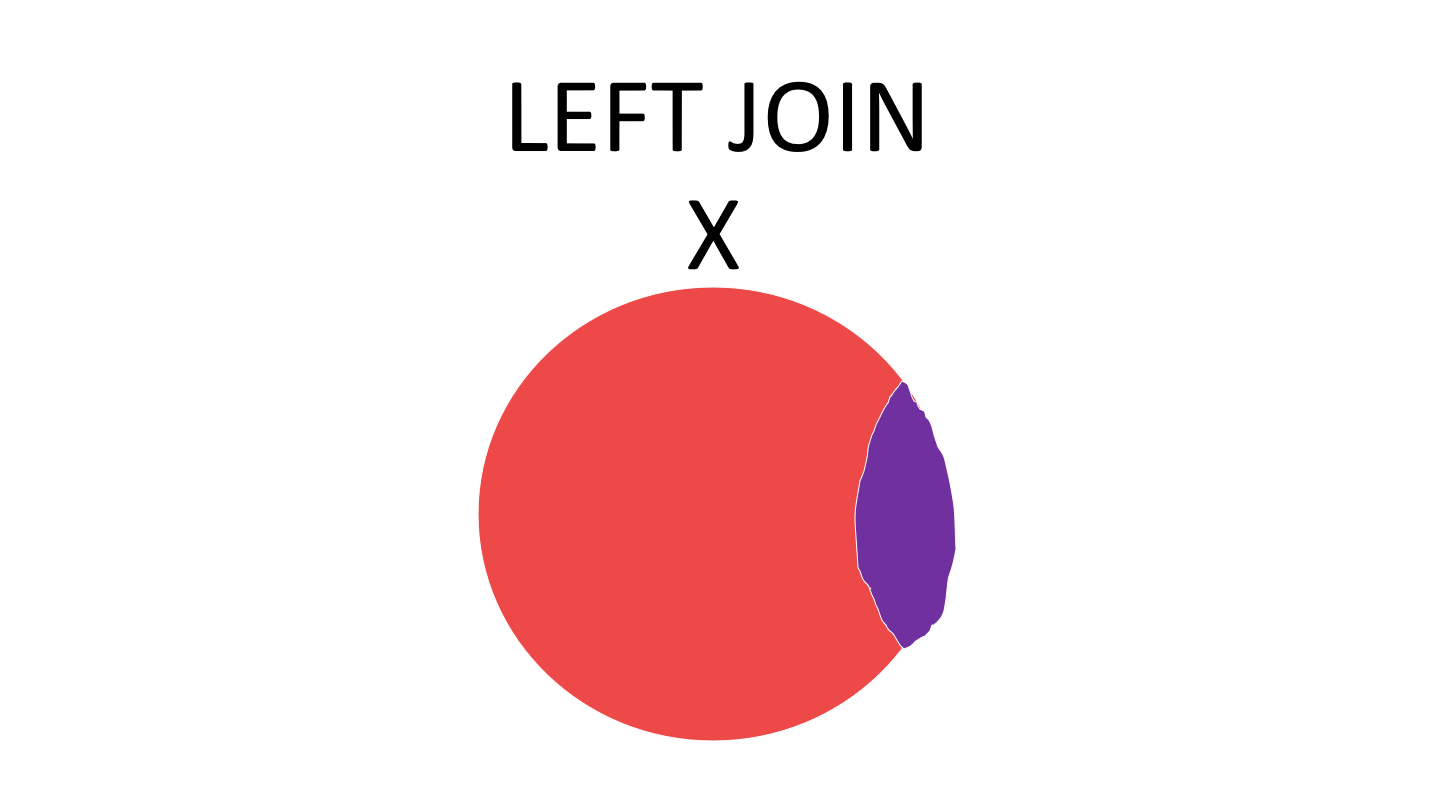

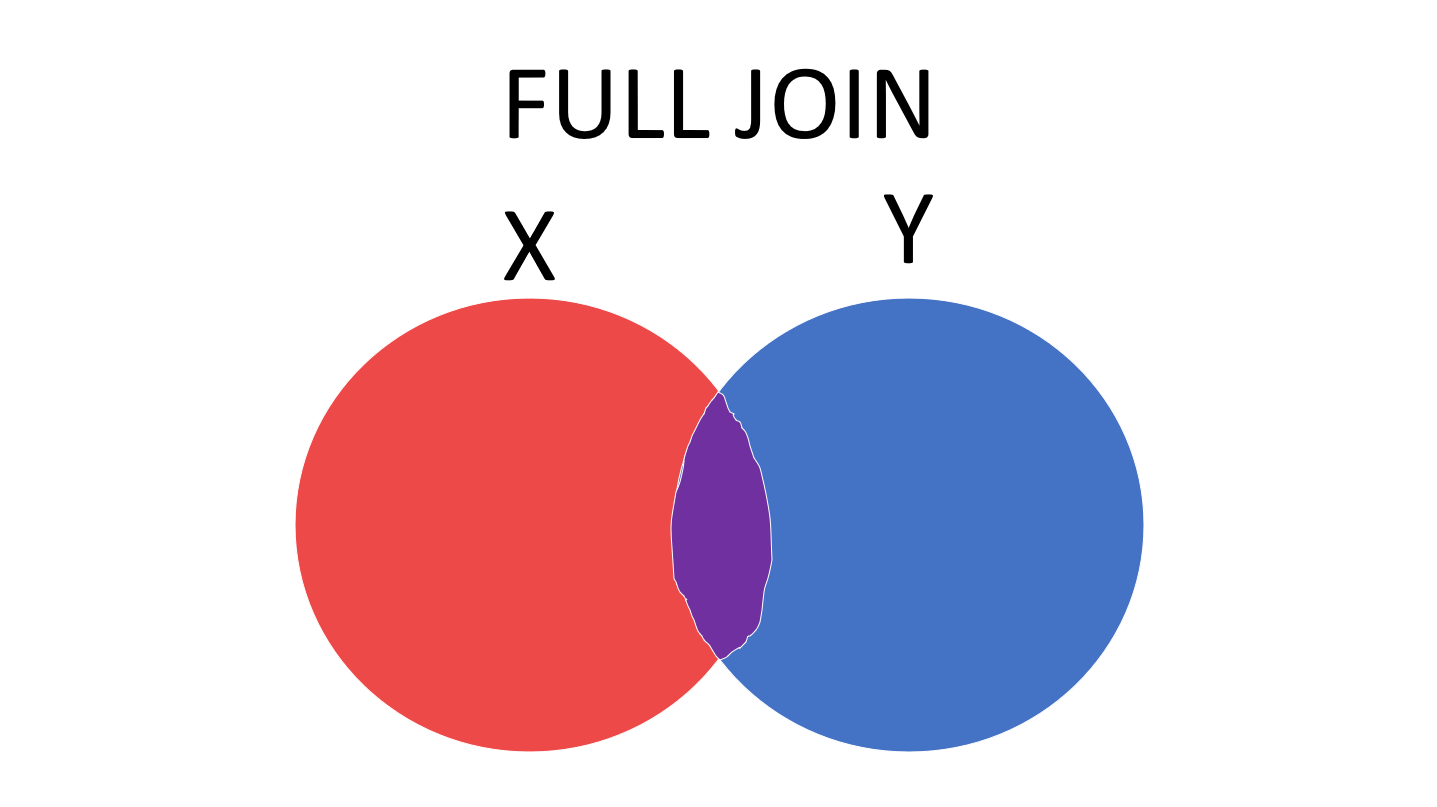

In R programming, people often use the term ‘join’ for merging the data, and many different types of join exist.

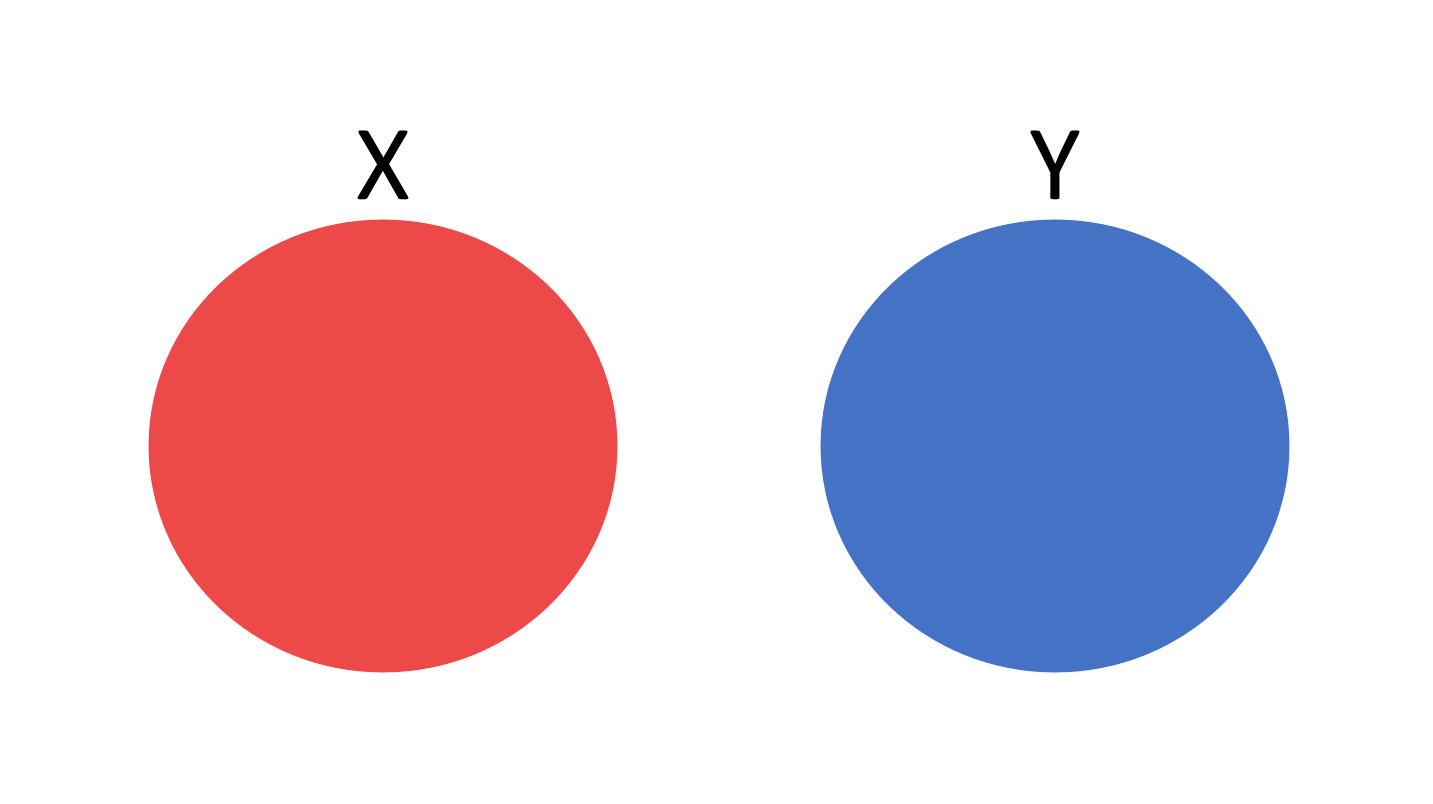

Let’s say we have two data sets: X and Y.
We would like the merge the two.
Help page is accessible by typing
it shows simple explanation of each join.
For different joins and animation visit this github page
You can change the suffix setting if “.x” & “.y” does not help you to have a full picture of the merging process
merged.df <- left_join(x = x.df,
y = y.df,
by = "id", #by which column will you merge
suffix = c(".population", ".language"))
merged.df
"id country.population capital.population population country.language capital.language language
1 1 France Paris 67500000 <NA> <NA> <NA>
2 2 Germany Berlin 83130000 Germany Berlin DE"
Let’s remove redundant columns
merged.df <- left_join(x = x.df,
y = y.df,
by = "id", #by which column will you merge
suffix = c(".population", ".language"))
merged.df
#delete redundant columns
##retrieving column names that has ".language"
grepl(".language", colnames(merged.df))
del_cols <- colnames(merged.df)[grepl(".language", colnames(merged.df))]
##remove!
merged.df <- merged.df %>%
select(-all_of(del_cols))
merged.df
"id country.population capital.population population language
1 1 France Paris 67500000 <NA>
2 2 Germany Berlin 83130000 DE"
Let’s rename the columns and fill in the blank language cell!
merged.df <- left_join(x = x.df,
y = y.df,
by = "id", #by which column will you merge
suffix = c(".population", ".language"))
merged.df
#delete redundant columns
##retrieving column names that has ".language"
grepl(".language", colnames(merged.df))
del_cols <- colnames(merged.df)[grepl(".language", colnames(merged.df))]
##remove!
merged.df <- merged.df %>%
select(-all_of(del_cols))
merged.df
"id country.population capital.population population language
1 1 France Paris 67500000 <NA>
2 2 Germany Berlin 83130000 DE"
#rename column names
##declaring the column names you want to have
##removing all the ".population" part
col_names <- stringr::str_replace_all(string = colnames(merged.df),
pattern = ".population",
replacement = "")
colnames(merged.df) <- col_names
print(colnames(merged.df))
'[1] "id" "country" "capital" "population" "language" '
#filling in the language column for France
merged.df <- merged.df %>%
mutate(language = ifelse(country=="France",
"FR",
language))
merged.df
" id country capital population language
1 1 France Paris 67500000 FR
2 2 Germany Berlin 83130000 DE"
Let’s rename the columns and fill in the blank language cell!
merged.df <- left_join(x = x.df,
y = y.df,
by = "id", #by which column will you merge
suffix = c(".population", ".language"))
merged.df
#delete redundant columns
##retrieving column names that has ".language"
grepl(".language", colnames(merged.df))
del_cols <- colnames(merged.df)[grepl(".language", colnames(merged.df))]
##remove!
merged.df <- merged.df %>%
select(-all_of(del_cols))
merged.df
"id country.population capital.population population language
1 1 France Paris 67500000 <NA>
2 2 Germany Berlin 83130000 DE"
#rename column names
##declaring the column names you want to have
##removing all the ".population" part
col_names <- stringr::str_replace_all(string = colnames(merged.df),
pattern = ".population",
replacement = "")
colnames(merged.df) <- col_names
print(colnames(merged.df))
'[1] "id" "country" "capital" "population" "language" '
#filling in the language column for France
merged.df <- merged.df %>%
mutate(language = ifelse(country=="France",
"FR",
language))
merged.df
" id country capital population language
1 1 France Paris 67500000 FR
2 2 Germany Berlin 83130000 DE"
Let’s read in a gapminder data set
library(gapminder)
#reading in the data
data <- gapminder
head(data)
'# A tibble: 6 × 6
country continent year lifeExp pop gdpPercap
<fct> <fct> <int> <dbl> <int> <dbl>
1 Afghanistan Asia 1952 28.8 8425333 779.
2 Afghanistan Asia 1957 30.3 9240934 821.
3 Afghanistan Asia 1962 32.0 10267083 853.
4 Afghanistan Asia 1967 34.0 11537966 836.
5 Afghanistan Asia 1972 36.1 13079460 740.
6 Afghanistan Asia 1977 38.4 14880372 786.'
Simple version
Calculating the average of Europe
Calculating the average & standard deviation of the life Expectancy by continent
If you want to save the resulted table, don’t forget to save it!
Let’s group the data by multiple variables
sum.df <- data %>%
group_by(continent, year) %>%
summarise(life_avg = mean(lifeExp),
gdp_avg = mean(gdpPercap),
.groups = "keep") %>% #keeping the group variables
ungroup()
sum.df
"# A tibble: 60 × 4
continent year life_avg gdp_avg
<fct> <int> <dbl> <dbl>
1 Africa 1952 39.1 1253.
2 Africa 1957 41.3 1385.
3 Africa 1962 43.3 1598.
4 Africa 1967 45.3 2050.
5 Africa 1972 47.5 2340.
6 Africa 1977 49.6 2586.
7 Africa 1982 51.6 2482.
8 Africa 1987 53.3 2283.
9 Africa 1992 53.6 2282.
10 Africa 1997 53.6 2379.
# … with 50 more rows
# ℹ Use `print(n = ...)` to see more rows"
Let’s check which continent has the highest average life expectancy in each year by descending order
sum.df %>%
arrange(-year, -life_avg)
"# A tibble: 60 × 4
continent year life_avg gdp_avg
<fct> <int> <dbl> <dbl>
1 Oceania 2007 80.7 29810.
2 Europe 2007 77.6 25054.
3 Americas 2007 73.6 11003.
4 Asia 2007 70.7 12473.
5 Africa 2007 54.8 3089.
6 Oceania 2002 79.7 26939.
7 Europe 2002 76.7 21712.
8 Americas 2002 72.4 9288.
9 Asia 2002 69.2 10174.
10 Africa 2002 53.3 2599.
# … with 50 more rows
# ℹ Use `print(n = ...)` to see more rows"
Simple linear regression
Checking the result
#simple linear regression
ols <- lm(formula = lifeExp ~ gdpPercap + continent,
data = data)
ols
summary(ols)
"Call:
lm(formula = lifeExp ~ gdpPercap + continent, data = data)
Residuals:
Min 1Q Median 3Q Max
-49.241 -4.479 0.347 5.105 25.138
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 4.789e+01 3.398e-01 140.93 <2e-16 ***
gdpPercap 4.453e-04 2.350e-05 18.95 <2e-16 ***
continentAmericas 1.359e+01 6.008e-01 22.62 <2e-16 ***
continentAsia 8.658e+00 5.555e-01 15.59 <2e-16 ***
continentEurope 1.757e+01 6.257e-01 28.08 <2e-16 ***
continentOceania 1.815e+01 1.787e+00 10.15 <2e-16 ***
---
Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1
Residual standard error: 8.39 on 1698 degrees of freedom
Multiple R-squared: 0.5793, Adjusted R-squared: 0.5781
F-statistic: 467.7 on 5 and 1698 DF, p-value: < 2.2e-16"
Checking the regression result in detail
#ols result!
ols_result <- summary(ols)
#checking the coefficients
ols_result$coefficients
" Estimate Std. Error t value Pr(>|t|)
(Intercept) 4.788852e+01 3.398053e-01 140.92927 0.000000e+00
gdpPercap 4.452704e-04 2.349795e-05 18.94933 8.552893e-73
continentAmericas 1.359272e+01 6.007856e-01 22.62491 2.822476e-99
continentAsia 8.657793e+00 5.554859e-01 15.58598 2.719424e-51
continentEurope 1.757234e+01 6.257430e-01 28.08236 7.595526e-143
continentOceania 1.814604e+01 1.787426e+00 10.15205 1.502557e-23"
class(ols_result$coefficients)
'"matrix" "array"'
Dealing with scientific notations(e)
#scientific notation
ols_result$coefficients[,1]
" (Intercept) gdpPercap continentAmericas continentAsia
4.788852e+01 4.452704e-04 1.359272e+01 8.657793e+00
continentEurope continentOceania
1.757234e+01 1.814604e+01"
format(ols_result$coefficients[,1], scientific = F)
' (Intercept) gdpPercap continentAmericas continentAsia
"47.8885161789" " 0.0004452704" "13.5927218705" " 8.6577934769"
continentEurope continentOceania
"17.5723409668" "18.1460410154" '
#NOTE THAT the numbers are characters now!
#scientific notation
ols_result$coefficients[,1]
"(Intercept) gdpPercap continentAmericas continentAsia
4.788852e+01 4.452704e-04 1.359272e+01 8.657793e+00
continentEurope continentOceania
1.757234e+01 1.814604e+01"
format(ols_result$coefficients[,1], scientific = F)
' (Intercept) gdpPercap continentAmericas continentAsia
"47.8885161789" " 0.0004452704" "13.5927218705" " 8.6577934769"
continentEurope continentOceania
"17.5723409668" "18.1460410154" '
#NOTE THAT the numbers are characters now!
#try round() function
round(ols_result$coefficients[,1],4) #rounding up at the fourth decimal point
' (Intercept) gdpPercap continentAmericas continentAsia continentEurope continentOceania
47.8885 0.0004 13.5927 8.6578 17.5723 18.1460'
For more details of running different regressions, please check this website: Introduction to Econometrics with R.
Now, it is time to plot pretty graphs!
We will use ggplot2 package for plotting graphs.
Please check out this link for more information.
Our goal is to draw a graph like this
Let’s start with a basic plot
dot plot - geom_point()
line graph - geom_line()
bar plot - geom_bar(x)
bar plot - geom_col(x,y)
density graph - geom_density()
Multiple countries!
Impossible to differentiate which point belongs to which country
Let’s add some colors according to a country!
Let’s add some colors according to a country!
#simple bar(column) graph for some European countries
data %>%
filter(country %in% c("United Kingdom", "Germany", "France", "Italy", "Spain")) %>%
ggplot() +
geom_col(aes(x = year, y = gdpPercap, color = country))
#for bar graphs you should use fill!
data %>%
filter(country %in% c("United Kingdom", "Germany", "France", "Italy", "Spain")) %>%
ggplot() +
geom_col(aes(x = year, y = gdpPercap, fill = country))
#simple line graph for some European countries
data %>%
filter(country %in% c("United Kingdom", "Germany", "France", "Italy", "Spain")) %>%
ggplot() +
geom_line(aes(x = year, y = gdpPercap, color = country)) +
labs(x="Year", y="Real GDP per capita in USD",
title = "Plotting GDP per Capita of Five European Countries over Time")
#simple line graph for some European countries
data %>%
filter(country %in% c("United Kingdom", "Germany", "France", "Italy", "Spain")) %>%
ggplot() +
geom_line(aes(x = year, y = gdpPercap, color = country)) +
labs(x="Year", y="Real GDP per capita in USD",
title = "Plotting GDP per Capita of Five European Countries over Time") +
theme(legend.position = "bottom")
#simple line graph for some European countries
data %>%
filter(country %in% c("United Kingdom", "Germany", "France", "Italy", "Spain")) %>%
ggplot() +
geom_line(aes(x = year, y = gdpPercap, color = country)) +
labs(x="Year", y="Real GDP per capita in USD",
title = "Plotting GDP per Capita of Five European Countries over Time") +
theme(legend.position = "bottom",
legend.title = element_text(size = 20), #changing legend title size
legend.text = element_text(size = 20), #changing legend text size
axis.text.x = element_text(size = 15), #changing axis text size
axis.title.x = element_text(size = 20), #changing axis title size
axis.text.y = element_text(size = 15), #changing axis text size
axis.title.y = element_text(size = 20), #changing axis title size
title = element_text(size = 20)) #changing title size
#simple line graph for some European countries
data %>%
filter(country %in% c("United Kingdom", "Germany", "France", "Italy", "Spain")) %>%
ggplot() +
geom_line(aes(x = year, y = gdpPercap, color = country)) +
labs(x="Year", y="Real GDP per capita in USD",
title = "Plotting GDP per Capita of Five European Countries over Time") +
theme(legend.position = "bottom",
legend.title = element_text(size = 20), #changing legend title size
legend.text = element_text(size = 20), #changing legend text size
axis.text.x = element_text(size = 15), #changing axis text size
axis.title.x = element_text(size = 20), #changing axis title size
axis.text.y = element_text(size = 15), #changing axis text size
axis.title.y = element_text(size = 20), #changing axis title size
title = element_text(size = 20), #changing title size
legend.key.size = unit(1.5, 'cm')) #changing legend color box size
#simple line graph for some European countries
base_plot <- data %>%
filter(country %in% c("United Kingdom", "Germany", "France", "Italy", "Spain")) %>%
ggplot() +
geom_line(aes(x = year, y = gdpPercap, color = country)) +
labs(x="Year", y="Real GDP per capita in USD",
title = "Plotting GDP per Capita of Five European Countries over Time") +
theme(legend.position = "bottom",
legend.title = element_text(size = 20), #changing legend title size
legend.text = element_text(size = 20), #changing legend text size
axis.text.x = element_text(size = 15), #changing axis text size
axis.title.x = element_text(size = 20), #changing axis title size
axis.text.y = element_text(size = 15), #changing axis text size
axis.title.y = element_text(size = 20), #changing axis title size
title = element_text(size = 20), #changing title size
legend.key.size = unit(1.5, 'cm')) + #changing legend color box size
scale_color_discrete(name = "Country") #changing legend title
base_plot
#simple line graph for some European countries
base_plot <- data %>%
filter(country %in% c("United Kingdom", "Germany", "France", "Italy", "Spain")) %>%
ggplot() +
geom_line(aes(x = year, y = gdpPercap, color = country)) +
labs(x="Year", y="Real GDP per capita in USD",
title = "Plotting GDP per Capita of Five European Countries over Time") +
theme(legend.position = "bottom",
legend.title = element_text(size = 20), #changing legend title size
legend.text = element_text(size = 20), #changing legend text size
axis.text.x = element_text(size = 15), #changing axis text size
axis.title.x = element_text(size = 20), #changing axis title size
axis.text.y = element_text(size = 15), #changing axis text size
axis.title.y = element_text(size = 20), #changing axis title size
title = element_text(size = 20), #changing title size
legend.key.size = unit(1.5, 'cm')) + #changing legend color box size
scale_color_discrete(name = "Country") +#changing legend title
scale_y_continuous(labels= scales::comma) #formatting the y axis tick
base_plot
First, let’s create a separate data frame for the GDP text labels.
Second, let’s add another layer!
#print(sort(unique(data$year)))
"[1] 1952 1957 1962 1967 1972 1977 1982 1987 1992 1997 2002 2007"
#creating the GDP text data frame
gdp_text.df <- data %>%
filter(country %in% c("United Kingdom", "Italy")) %>%
filter(year==1952 | year==2007)
#adding the text layer
mid_plot <- base_plot +
geom_text(data = gdp_text.df,
aes(x = year, y = gdpPercap, label = gdpPercap))
mid_plot
#print(sort(unique(data$year)))
"[1] 1952 1957 1962 1967 1972 1977 1982 1987 1992 1997 2002 2007"
#creating the GDP text data frame
gdp_text.df <- data %>%
filter(country %in% c("United Kingdom", "Italy")) %>%
filter(year==1952 | year==2007)
#adding the text layer
mid_plot <- base_plot +
geom_text(data = gdp_text.df,
aes(x = year, y = gdpPercap, label = gdpPercap),
size = 7, #size adjustment
vjust = 0.7) #vertical position adjustment
mid_plot
#print(sort(unique(data$year)))
"[1] 1952 1957 1962 1967 1972 1977 1982 1987 1992 1997 2002 2007"
#creating the GDP text data frame
gdp_text.df <- data %>%
filter(country %in% c("United Kingdom", "Italy")) %>%
filter(year==1952 | year==2007)
#adding the text layer
mid_plot <- base_plot +
geom_text(data = gdp_text.df,
aes(x = year, y = gdpPercap,
label = round(gdpPercap)), #rounding up the GDP!
size = 7, #size adjustment
vjust = 0.7) #position adjustment
mid_plot
#print(sort(unique(data$year)))
"[1] 1952 1957 1962 1967 1972 1977 1982 1987 1992 1997 2002 2007"
#creating the GDP text data frame
gdp_text.df <- data %>%
filter(country %in% c("United Kingdom", "Italy")) %>%
filter(year==1952 | year==2007)
#adding the text layer
mid_plot <- base_plot +
geom_text(data = gdp_text.df,
aes(x = year, y = gdpPercap,
#rounding up the GDP and adding a comma!!
label = format(round(gdpPercap), big.mark = ",", big.interval = 3L)),
size = 7, #size adjustment
vjust = 0.7) #position adjustment
mid_plot
Let’s create a separate data frame for the country text labels.
Second, let’s add another layer!
#creating the country text data frame
country_text.df <- data %>%
filter(country %in% c("United Kingdom", "Germany", "France", "Italy", "Spain"))%>%
filter(year==2002)
#adding the text layer
final_plot <- mid_plot +
geom_text(data = country_text.df,
aes(x = year, y = gdpPercap, label = country, color = country),
size = 7,
vjust = 0.7,
show.legend = F) #not showing the legend
final_plot
Let’s save the final_plot
What is an R Markdown?
-> Think as a latex file combined with R!
Check these links:
rmarkdown, markdown, knitr package are essential packages for
any R Markdown file
This session only focuses on the pdf format.
If you are more interested in html format, please check out:
yaml header is the first part of an R markdown file.
It decides many important aspects of your output.
---
title: "R markdown guide"
author: "Jongoh Kim"
date: "`r format(Sys.time(), '%d %B, %Y')`" #setting the date by dd month, yyyy
output:
pdf_document:
toc: true #add a table of contents a the start of a document
toc_depth: 3 #The lowest level of headings to add to table of contents (e.g. 2, 3)
number_sections: true #numbering the sections
urlcolor: blue #setting the hyperlink color to blue
---
Check out the ‘markdown_example.Rmd’ file and
its output(markdown_example.pdf) from
Special thanks to Etienne Bacher for his help and slide codes!
Source code for slides:
https://github.com/jongohkim91/R-A-Z/index.qmd
R for Data Science from Hadley Wickham and Garrett Grolemund:
ggplot2:
https://ggplot2.tidyverse.org/
R Markdown: The Definitive Guide from Yihui Xie, J. J. Allaire, and Garrett Grolemund:
Communicate Data with R: https://communicate-data-with-r.netlify.app/
